  MDTools 980 What's New

Machining Callout Grouping
Grouping of Cavities within a Footprint
Identical Bolt Holes and Locating Pins can now be Grouped within a Footprint
Grouping of Cavities within a Footprint
Grouping of Cavities within a Footprint
Grouping Cavities Within Multiple Footprints
Identical Bolt Holes and Locating Pins Within Multiple Footprints can be Grouped on the Same Face
Grouping Cavities within Multiple Footprints
Grouping Cavities within Multiple Footprints
Grouping Identical Cavities
Identical Cavities on the Same Face can be Grouped
Grouping Identical Cavities
Grouping Identical Cavities
Miscellaneous
SQL Library Accessible from MDTools
Users can now select SQL Libraries directly from MDTools Settings
SQL Library Accessible from MDTools

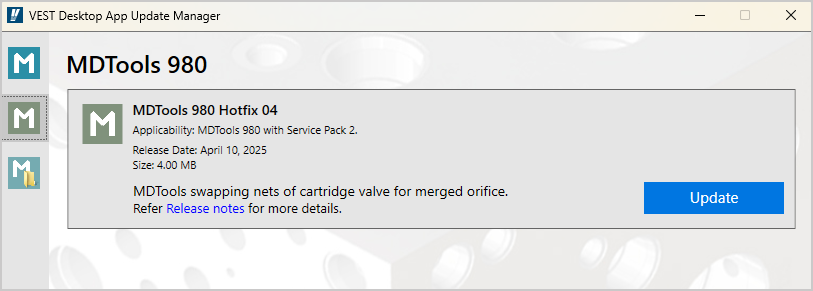

Integration with VEST Desktop App
Notifications and Updates can be received and acted upon directly from the VEST Desktop App
Integration with VEST Desktop App
